Anhui Zhenzhou Machine Blade & Tools Manufacture
qc11k-253200 series cnc shearing machine
Product name : qc11k-253200 series cnc shearing machine
Model No. : ZZM-7
Products Category: > Machinery > Shearing Machine Series
Basic Info.
Model NO.:QC11K-25/3200
Type:Press Brake
Application:Machinery & Hardware
Certification:SGS, ISO 9001:2000, ISO 9001:2008
Condition:New
Automation:Automatic
Type for Cutting Machine:CNC Cutting Machine
Type for Fold-bending Machine:CNC Fold-bend Machine
Export Markets:Global
Additional Info.
Trademark:
Origin:Maanshan, Anhui, China
Production Capacity:260/Year
Product Description

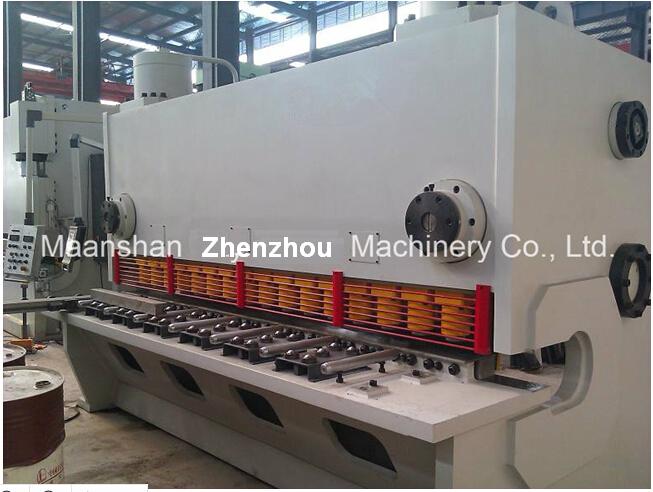

QC11K-25/3200 series hydraulic plate shears
Max. Cutting thickness Mild steel: 25mm/ Stainless stee30mm
Cutting length 8000mm-16000mm
Features:
compact concise appearance, good looking and decent;
operation is simple and easy, adjust is simple and reliable;
Product specifications:
| Name/Model |
62/6
|
62/8
|
80/10
|
40/13
|
62/13
|
80/13
|
25/16
|
31/16
|
40/16
|
50/16
|
62/16
|
| Max. Cutting thickness |
|
|
|
|
|
|
|
|
|
|
|
| Mild steel mm |
6
|
8
|
10
|
13
|
13
|
13
|
16
|
16
|
16
|
16
|
16
|
| Stainless steel mm |
3
|
4
|
6
|
8
|
8
|
8
|
10
|
10
|
10
|
10
|
10
|
| Cutting length mm |
6200
|
6200
|
8000
|
4000
|
6200
|
8000
|
2500
|
3100
|
4000
|
5000
|
6200
|
| Cutting force kN |
132
|
220
|
430
|
730
|
620
|
620
|
730
|
850
|
850
|
850
|
850
|
| Back gauge distance mm |
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
| Rake angle adjustment ° |
0.5-2.5
|
0.5-2.5
|
0.5-2
|
0.5-2
|
0.5-2.5
|
0.5-2.5
|
0.5-3
|
0.5-2.5
|
0.5-2.5
|
0.5-2.5
|
0.5-2.5
|
| Stroke Per minute |
7-45
|
8-35
|
7-30
|
10-30
|
10-30
|
7-45
|
7-30
|
12-33
|
8-30
|
6-20
|
7-20
|
| Throat depth mm |
100
|
100
|
100
|
200
|
60
|
400
|
300
|
300
|
200
|
100
|
100
|
| numbers of hold downs |
32
|
32
|
42
|
20
|
32
|
42
|
13
|
16
|
20
|
22
|
32
|
| oil tank volume L |
686
|
686
|
845
|
561
|
686
|
1600
|
499
|
591
|
561
|
662
|
686
|
| motor power kW |
15
|
22
|
37
|
30
|
30
|
60
|
22
|
22
|
30
|
37
|
37
|
| weight kg |
20000
|
24000
|
45000
|
14000
|
28000
|
55000
|
10000
|
12000
|
18000
|
28000
|
36000
|
| dimension length mm |
7065
|
7095
|
9016
|
4885
|
7100
|
9090
|
3265
|
3865
|
5020
|
5935
|
7135
|
| width mm |
2650
|
2540
|
2615
|
2190
|
2515
|
3525
|
2140
|
2140
|
2290
|
2550
|
2550
|
| height mm |
2650
|
2815
|
3000
|
2488
|
2830
|
3360
|
2350
|
2350
|
2575
|
2870
|
2870
|
| Name/Model |
80/16
|
21/20
|
/25/20
|
31/20
|
40/20
|
25/25
|
31/25
|
40/25
|
31/30
|
| Max. Cutting thickness |
|
|
|
|
|
|
|
|
|
| Mild steel mm |
16
|
20
|
20
|
20
|
20
|
25
|
25
|
25
|
30
|
| Stainless steel mm |
10
|
12
|
12
|
12
|
12
|
16
|
16
|
16
|
30
|
| Cutting length mm |
8000
|
2100
|
2500
|
3100
|
4000
|
2500
|
3100
|
4000
|
3100
|
| Cutting force kN |
850
|
1270
|
1270
|
1370
|
1270
|
1960
|
1960
|
1500
|
3300
|
| Back gauge distance mm |
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
1000
|
| Rake angle adjustment ° |
0.5-2.5
|
0.5-3
|
0.5-3
|
0.5-2.5
|
0.5-3
|
0.5-2.5
|
0.5-2.5
|
0.5-3.5
|
0.5-3.5
|
| Stroke Per minute |
7-30
|
7-35
|
9-35
|
7-35
|
5-20
|
5-3
|
5-40
|
5-20
|
4-15
|
| Throat depth mm |
650
|
300
|
300
|
300
|
300
|
300
|
300
|
300
|
200
|
| numbers of hold downs |
42
|
11
|
13
|
16
|
20
|
13
|
16
|
20
|
16
|
| oil tank volume L |
1800
|
3700
|
499
|
591
|
627
|
828
|
1068
|
1100
|
1000
|
| motor power kW |
60
|
30
|
30
|
30
|
45
|
45
|
45
|
37
|
55
|
| weight kg |
85000
|
12000
|
14000
|
15000
|
30000
|
22000
|
25000
|
38000
|
32000
|
| dimension length mm |
9150
|
2970
|
3315
|
3970
|
5050
|
3585
|
4260
|
5335
|
4485
|
| width mm |
3250
|
2275
|
2275
|
2275
|
3530
|
2800
|
2900
|
2900
|
2985
|
| height mm |
3520
|
2470
|
2470
|
2470
|
3140
|
2835
|
2885
|
3735
|
2985
|
