Anhui Zhenzhou Machine Blade & Tools Manufacture

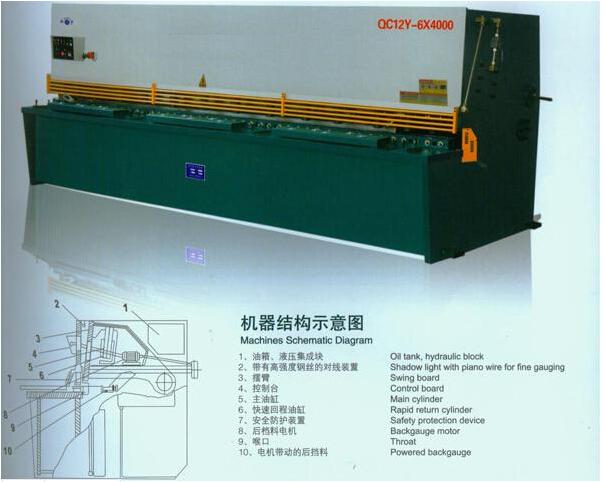

qc12y series hydraulic shearing machine
Product name : qc12y series hydraulic shearing machine
Model No. : ZZM-8
Products Category: > Machinery > Shearing Machine Series
Basic Info.
Model NO.:QC12Y Series
Type:Press Brake
Application:Machinery & Hardware
Certification:SGS, ISO 9001:2000, ISO 9001:2008
Condition:New
Automation:Automatic
Type for Cutting Machine:CNC Cutting Machine
Type for Fold-bending Machine:CNC Fold-bend Machine
Export Markets:Global
Additional Info.
Trademark:
Origin:Maanshan, Anhui, China
Production Capacity:260/Year
Product Description
Features:
1. The use of computer-aided design. Important component rack, sliders, etc. using ANSYS finite element analysis software, to ensure the reliability of the machine.
2. rack, slide using welded structure, using German technology to eliminate the stress treatment, maintain good accuracy.
3. The use of shot blasting methods, and spray anti-rust paint.
4. The machine column, table, binder beams, boring and milling on the turret using disposable forming process, to ensure that the squareness and parallelism of the mounting surface.
5. Using the three-point support rolling guide, to maintain good accuracy, improved cut quality.
6. blade gap adjustment convenient, improved cut quality. Blade gap value with digital display.
7. shear angle adjustable, reducing deformation of the sheet.
8. Pour the turret structure adopted within easy blanking, to improve the accuracy of parts.
9. rectangular blades with four cutting edges, long life, easy grinding.
10. Activities blade holder, easy to adjust blade gap uniformity, improve cut quality, and extend blade life.
11. The use of advanced integrated hydraulic control system reliability.
12. Using a tandem cylinder synchronization systems, machine even by force.
13. The hydraulic system uses Bladder accumulators as auxiliary energy, while absorbing pressure shocks, the machine runs smoothly, low noise.
14. Hydraulic pressure feeder shearing more reliable.
15. The binder force with shear force changes.
16. The spherical balls care feeding station, user-friendly cut feed.
17. The vertical block feeder positioning operation before the user to adapt to the requirements under the front foot with the blade.
18. Cut with piecewise functions.
19. E20 shears can ESTUN company dedicated control system, variable frequency motor control inverter + backgauge for automatic positioning. Programming convenience, control precision is high.
20. After CNC backgauge gear ball screw, high precision.
Product specifications:
| Name Type |
Shear angle (°) |
Strokes (n/min) |
Throat depth (mm) |
Table height (mm) |
Back gauge range (mm) |
Motor power (KW) |
Overall dim (mm) |
Weight (kg) |
| QC12Y-6×2500 | 1°30′ | ≥22 | 300 | 810 | 10~600 | 11 | 3150×1550×1655 | 5900 |
| QC12Y-6×3200 | 1°30′ | ≥18 | 300 | 810 | 10~700 | 11 | 3850×1600×1755 | 7280 |
| QC12Y-6×4000 | 1°30′ | ≥15 | 300 | 810 | 10~800 | 11 | 4650×1700×1855 | 9000 |
| QC12Y-6×5000 | 1°30′ | ≥10 | / | 910 | 10~800 | 11 | 5770×2380×2250 | 15500 |
| QC12Y-7×6000 | 1°30′ | ≥7 | / | 910 | 10~800 | 15 | 6810×2530×2250 | 23000 |
| QC12Y-8×2550 | 1°30′ | ≥11 | 300 | 800 | 10~700 | 15 | 3112×1800×1850 | 7200 |
| QC12Y-8×3050 | 1°30′ | ≥10 | 300 | 800 | 10~700 | 15 | 3587×1800×1850 | 8000 |
| QC12Y-8×4000 | 1°30′ | ≥8 | 300 | 800 | 10~700 | 15 | 4612×1800×1850 | 10250 |
| QC12Y-8×5000 | 1°30′ | ≥7 | / | 800 | 10~800 | 15 | 5790×2530×2250 | 20000 |
| QC12Y-8×6000 | 1°30′ | ≥7 | 100 | 800 | 20~700 | 15 | 6810×2530×2250 | 23000 |
| QC12Y-10×2550 | 1°30′ | ≥12 | 300 | 800 | 20~800 | 18.5 | 3112×1800×1850 | 8000 |
| QC12Y-10×3050 | 1°30′ | ≥11 | 300 | 800 | 20~800 | 18.5 | 3587×1800×1850 | 8600 |
| QC12Y-10×4000 | 1°30′ | ≥9 | 300 | 800 | 20~800 | 18.5 | 4612×1800×1850 | 10400 |
| QC12Y-12×2500 | 1°30′ | ≥9 | 300 | 800 | 10~800 | 18.5 | 3290×2215×2120 | 10000 |
| QC12Y-12×3200 | 1°30′ | ≥8 | 300 | 800 | 10~800 | 18.5 | 3990×2215×2120 | 11800 |
| QC12Y-12×4000 | 1°30′ | ≥7 | 300 | 860 | 10~800 | 18.5 | 4830×2390×2200 | 14230 |
| QC12Y-16×2500 | 2°30′ | ≥8 | 300 | 800 | 10~800 | 22 | 3406×2350×2180 | 12700 |
| QC12Y-16×3200 | 2°30′ | ≥8 | 300 | 900 | 10~800 | 22 | 4105×2325×2220 | 15000 |
| QC12Y-16×4000 | 2°30′ | ≥7 | 300 | 900 | 10~800 | 22 | 4905×2385×2250 | 17150 |
| QC12Y-20×2500D | 2°30′ | ≥6 | 300 | 880 | 20~1000 | 30 | 3400×2350×2700 | 19350 |
| QC12Y-20×3200D | 2°30′ | ≥5 | 300 | 880 | 20~1000 | 30 | 4100×2350×2730 | 22000 |
| QC12Y-20×4000D | 2°30′ | ≥5 | 300 | 880 | 20~1000 | 30 | 4900×2350×2760 | 25000 |
| Q12Y-25×2500 | 3° | ≥5 | 300 | 880 | 40~1000 | 30 | 3480×2410×2750 | 23500 |
| Q12Y-25×3200 | 3° | ≥5 | 300 | 880 | 40~1000 | 30 | 4230×2410×2755 | 27000 |
| Q12Y-25×4000 | 3° | ≥4 | 300 | 880 | 40~1000 | 37 | 4985×2410×2690 | 30550 |
| Q12Y-32×2500 | 3°30′ | ≥4 | / | 1025 | 40~1000 | 55 | 3697×3450×3250 | 32800 |
| Q12Y-32×3200 | 3°30′ | ≥4 | / | 1000 | 50~1000 | 55 | 4397×3450×3000 | 40000 |
| Q12Y-32×4000 | 3°30′ | ≥4 | / | 1025 | 60~1000 | 55 | 5195×3793×3357 | 43000 |
| Q12Y-40×2500 | 3°30′ | ≥3 | / | 1100 | 40~1000 | 75 | 4100×3770×3600 | 43000 |
