qc11k-86200 series hydraulic guillotine shear with sgs approved

Product name : qc11k-86200 series hydraulic guillotine shear with sgs approved

Model No. : ZZM-6

Products Category: > Machinery > Shearing Machine Series

Basic Info.

Model NO.:QC11K

Type:Press Brake

Application:Machinery & Hardware, Textiles

Certification:SGS, ISO 9001:2000, ISO 9001:2008

Condition:New

Automation:Automatic

Size:QC11k-8*6200

Cutting Thickness:8mm

Cutting Width:6200mm

Cutting Material:Ss, Steel, Alu...

Color:Blue and White or as Your Requirement.

Export Markets:Global

Additional Info.

Trademark:

Packing:Wooden Package or as Appointed.

Standard:SGS, ISO

Origin:Maanshan, Anhui, China

HS Code:846239900

Production Capacity:260/Year

Product Description

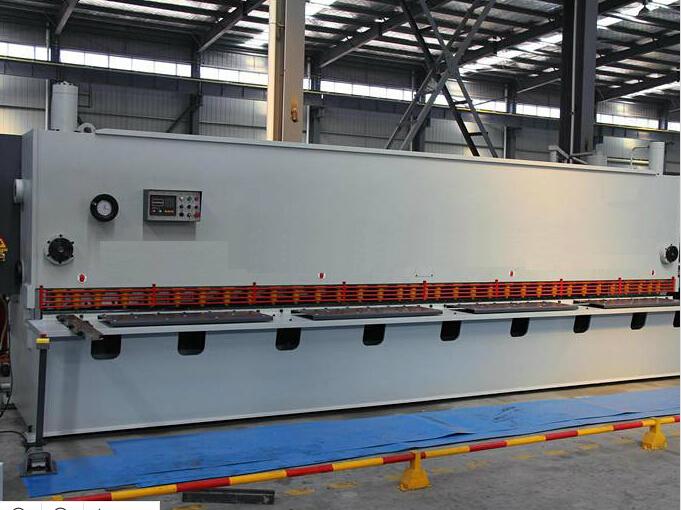

Q11K-8/6200 series Hydraulic Guillotine Shear

Max. Cutting thickness Mild steel: 8mm/ Stainless stee 4mm
Cutting length 6200mm-8000mm

Features:

1. The use of computer-aided design. Important component rack, sliders, etc. using ANSYS finite element analysis software, to ensure the reliability of the machine.

2. rack, slide using welded structure, using German technology to eliminate the stress treatment, maintain good accuracy.

3. The use of shot blasting methods, and spray anti-rust paint.

4. The machine column, table, binder beams, boring and milling on the turret using disposable forming process, to ensure that the squareness and parallelism of the mounting surface.

5. Using the three-point support rolling guide, to maintain good accuracy, improved cut quality.

6. blade gap adjustment convenient, improved cut quality. Blade gap value with digital display.

7. shear angle adjustable, reducing deformation of the sheet.

8. Pour the turret structure adopted within easy blanking, to improve the accuracy of parts.

9. rectangular blades with four cutting edges, long life, easy grinding.

10. Activities blade holder, easy to adjust blade gap uniformity, improve cut quality, and extend blade life.

11. The use of advanced integrated hydraulic control system reliability.

12. Using a tandem cylinder synchronization systems, machine even by force.

13. The hydraulic system uses Bladder accumulators as auxiliary energy, while absorbing pressure shocks, the machine runs smoothly, low noise.

14. Hydraulic pressure feeder shearing more reliable.

15. The binder force with shear force changes.

16. The spherical balls care feeding station, user-friendly cut feed.

17. The vertical block feeder positioning operation before the user to adapt to the requirements under the front foot with the blade.

18. Cut with piecewise functions.

19. E20 shears can ESTUN company dedicated control system, variable frequency motor control inverter + backgauge for automatic positioning. Programming convenience, control precision is high.

20. After CNC backgauge gear ball screw, high precision.

Product specifications:

Name/Model	62/6	62/8	80/10	40/13	62/13	80/13	25/16	31/16	40/16	50/16	62/16
Max. Cutting thickness
Mild steel mm	6	8	10	13	13	13	16	16	16	16	16
Stainless steel mm	3	4	6	8	8	8	10	10	10	10	10
Cutting length mm	6200	6200	8000	4000	6200	8000	2500	3100	4000	5000	6200
Cutting force kN	132	220	430	730	620	620	730	850	850	850	850
Back gauge distance mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rake angle adjustment °	0.5-2.5	0.5-2.5	0.5-2	0.5-2	0.5-2.5	0.5-2.5	0.5-3	0.5-2.5	0.5-2.5	0.5-2.5	0.5-2.5
Stroke Per minute	7-45	8-35	7-30	10-30	10-30	7-45	7-30	12-33	8-30	6-20	7-20
Throat depth mm	100	100	100	200	60	400	300	300	200	100	100
numbers of hold downs	32	32	42	20	32	42	13	16	20	22	32
oil tank volume L	686	686	845	561	686	1600	499	591	561	662	686
motor power kW	15	22	37	30	30	60	22	22	30	37	37
weight kg	20000	24000	45000	14000	28000	55000	10000	12000	18000	28000	36000
dimension length mm	7065	7095	9016	4885	7100	9090	3265	3865	5020	5935	7135
width mm	2650	2540	2615	2190	2515	3525	2140	2140	2290	2550	2550
height mm	2650	2815	3000	2488	2830	3360	2350	2350	2575	2870	2870

Name/Model	80/16	21/20	/25/20	31/20	40/20	25/25	31/25	40/25	31/30
Max. Cutting thickness
Mild steel mm	16	20	20	20	20	25	25	25	30
Stainless steel mm	10	12	12	12	12	16	16	16	30
Cutting length mm	8000	2100	2500	3100	4000	2500	3100	4000	3100
Cutting force kN	850	1270	1270	1370	1270	1960	1960	1500	3300
Back gauge distance mm	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rake angle adjustment °	0.5-2.5	0.5-3	0.5-3	0.5-2.5	0.5-3	0.5-2.5	0.5-2.5	0.5-3.5	0.5-3.5
Stroke Per minute	7-30	7-35	9-35	7-35	5-20	5-3	5-40	5-20	4-15
Throat depth mm	650	300	300	300	300	300	300	300	200
numbers of hold downs	42	11	13	16	20	13	16	20	16
oil tank volume L	1800	3700	499	591	627	828	1068	1100	1000
motor power kW	60	30	30	30	45	45	45	37	55
weight kg	85000	12000	14000	15000	30000	22000	25000	38000	32000
dimension length mm	9150	2970	3315	3970	5050	3585	4260	5335	4485
width mm	3250	2275	2275	2275	3530	2800	2900	2900	2985
height mm	3520	2470	2470	2470	3140	2835	2885	3735	2985
